GPS-Synchronized Display Clock – Toyota MR2 SW20 (OEM-Style Mod)

I always found it frustrating that every time the battery is disconnected, the factory clock has to be set manually again. It’s a small thing, but over time it became surprisingly annoying.

So I decided to build a simple modification that automatically sets the correct date and time using a GPS module.

Yes — it’s probably overkill, but it’s cheap, reliable, and works perfectly :wink:

The setup uses two displays and a GPS receiver as the time source. Thanks to GPS synchronization, the clock always shows the correct time after reconnecting the battery — no user input required. Even when driving across time zones (for example, to the USA), the time remains accurate.

Key features:

  • Automatic date and time via GPS

  • No manual adjustment after battery disconnect

  • Plug & play installation

  • OEM-like appearance

  • Dark plexiglass front to match the factory interior

The final result looks very close to stock, but adds modern functionality that the original clock never had. A small upgrade, but one that significantly improves everyday usability.

Happy to share more details if anyone is interested.

1 Like

Parts list, that im use:

1 Like

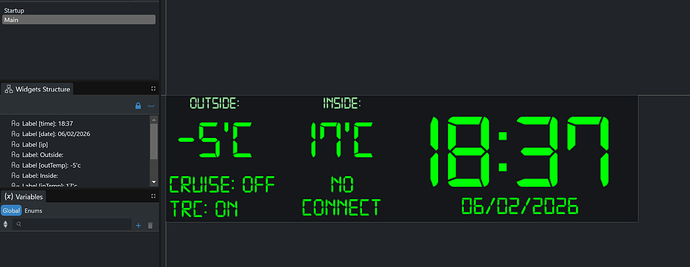

Im slowly finish the code, then i upload that there so everybody can use for free clock/temp in/out (yes, i will remove Cruise, TRC and CheckEngine)

Its fully customizable :slight_smile:

1 Like

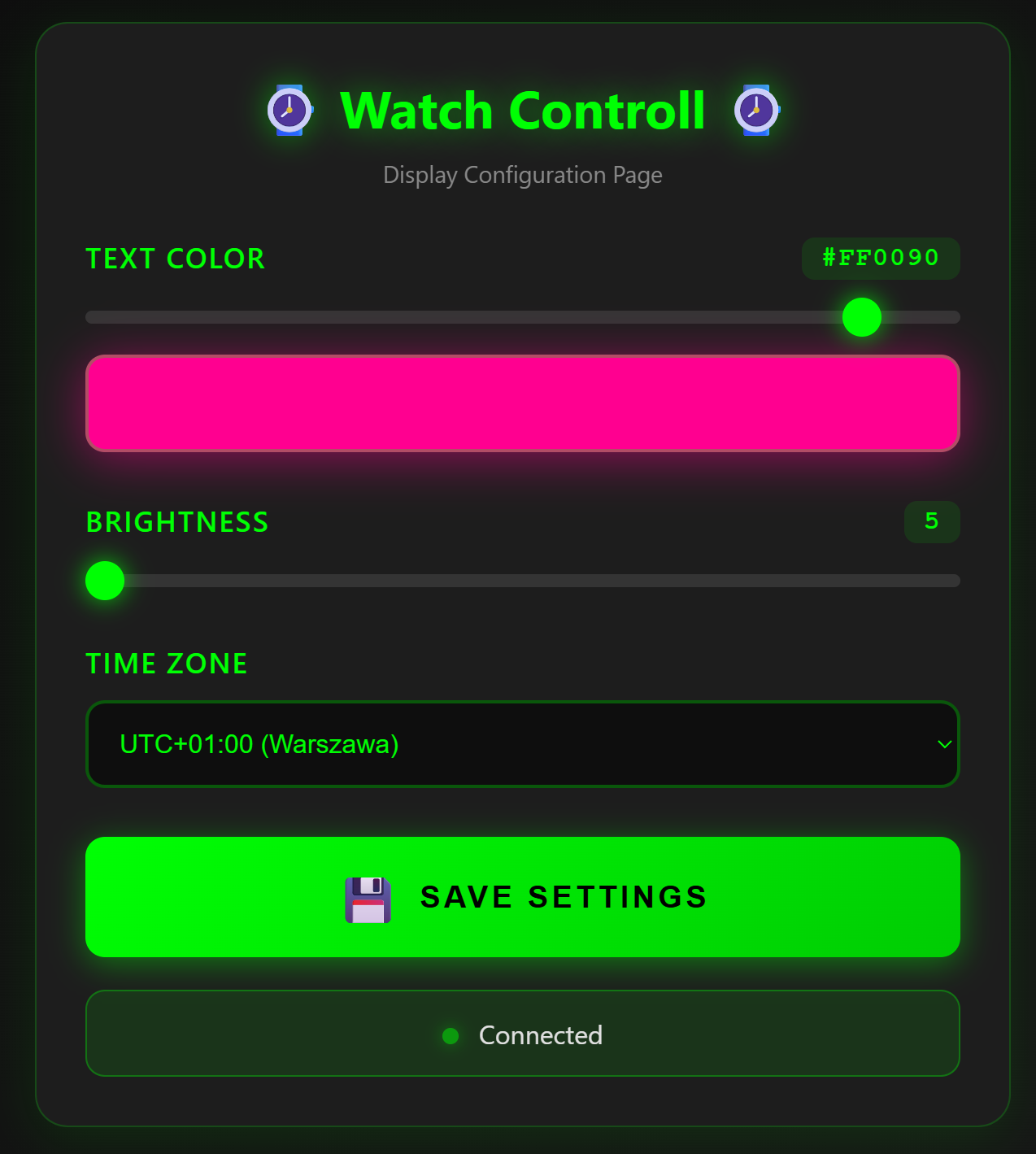

Ok. Im Alma’s finish webpage to adjust brightness and color :slight_smile:

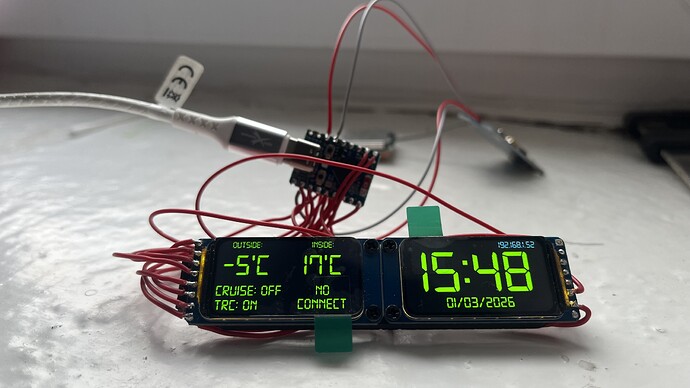

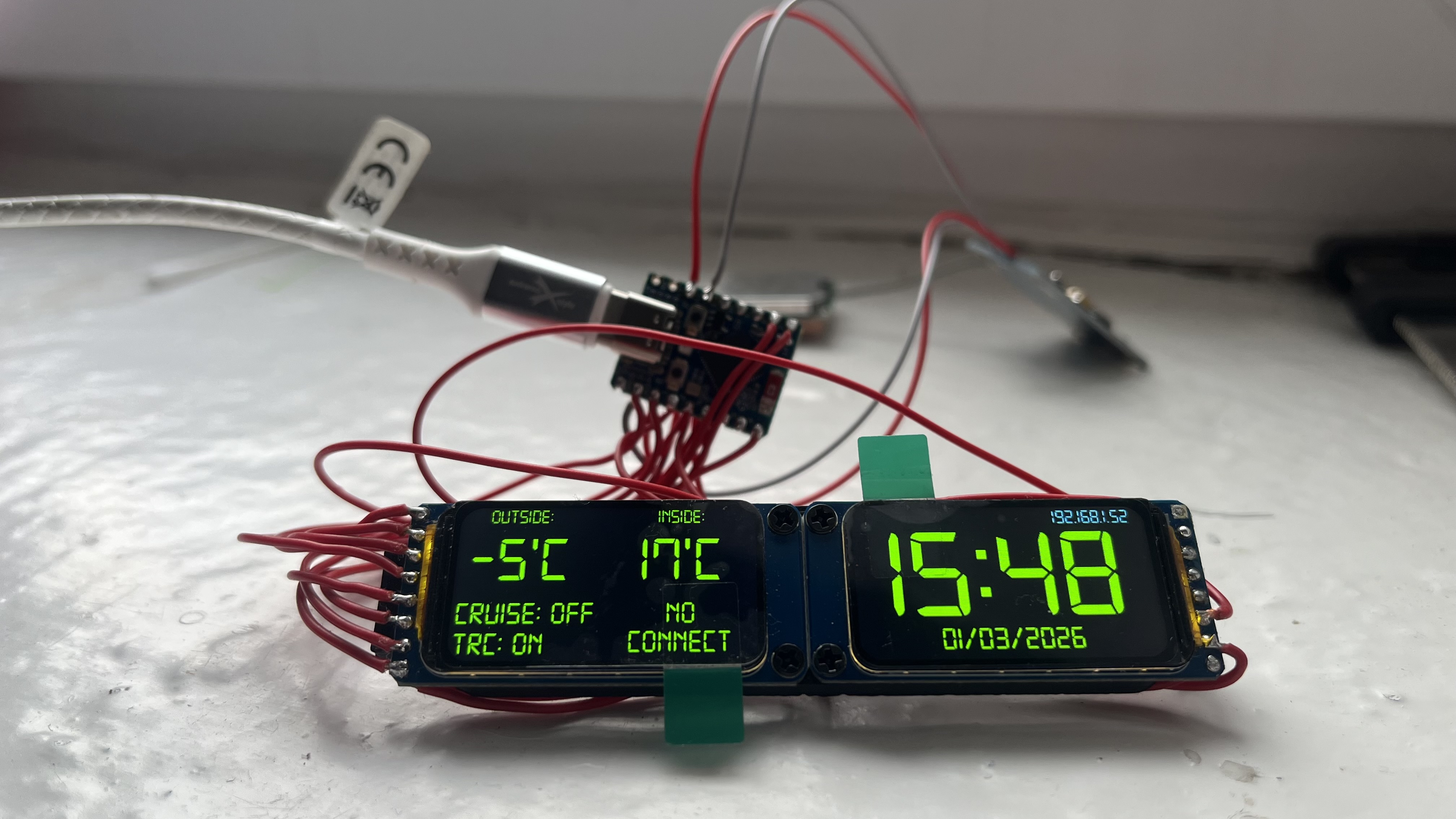

Small update, just im recive my GPS module, and time works really good!Cold start takes around 15s to get current time from GPS :slightly_smiling_face:

Slowly im going to finish it :slight_smile:

Some update….

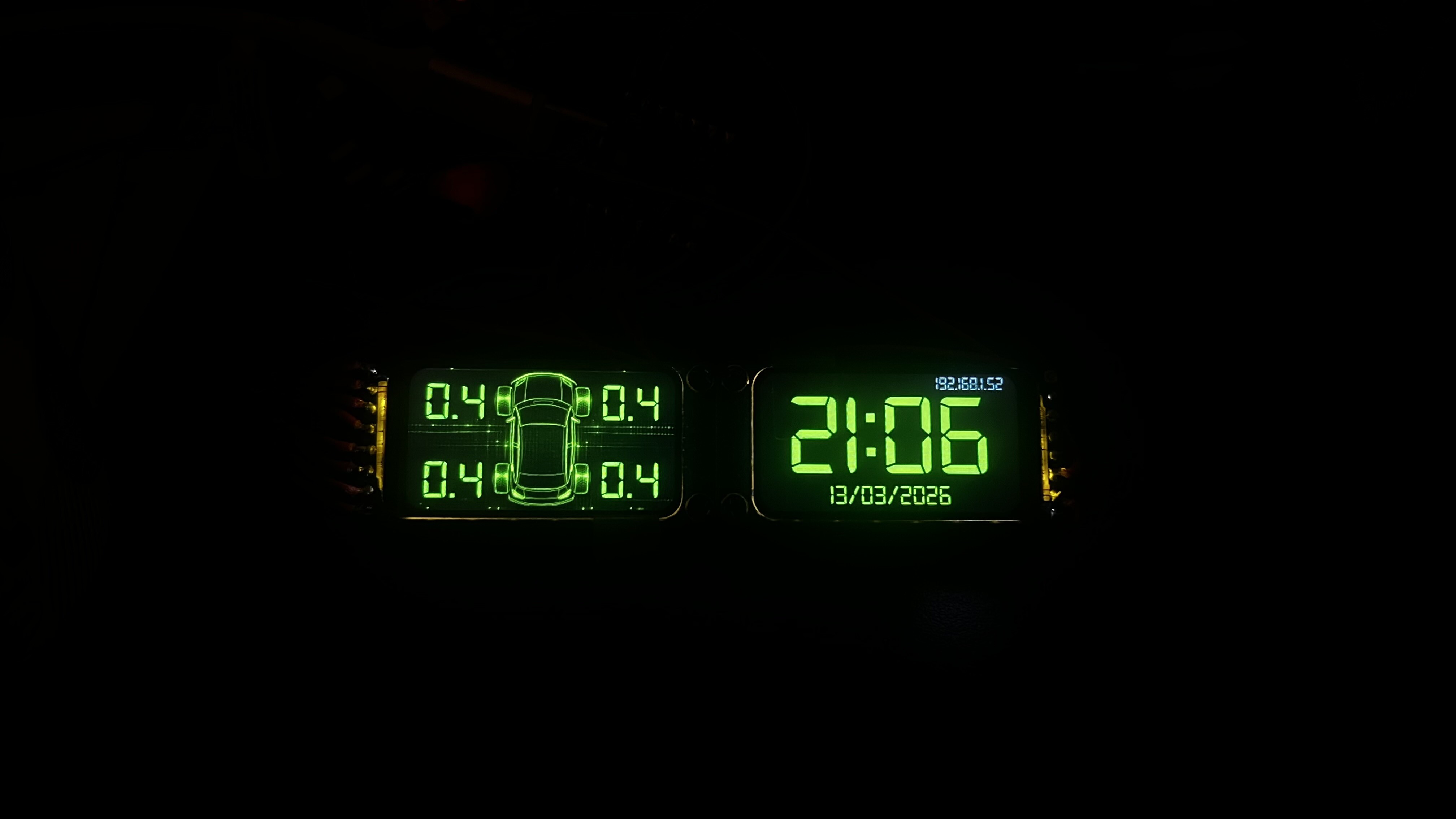

People ask me, if there is a chance to integrate TPMS with my OEM+ clock….So yes, it’s possible!!

I’m not so strong to make pressure in that bottle, but u can see that bars grow up (from 0.4 to 0.5), and yes, it also support temperature :slight_smile:

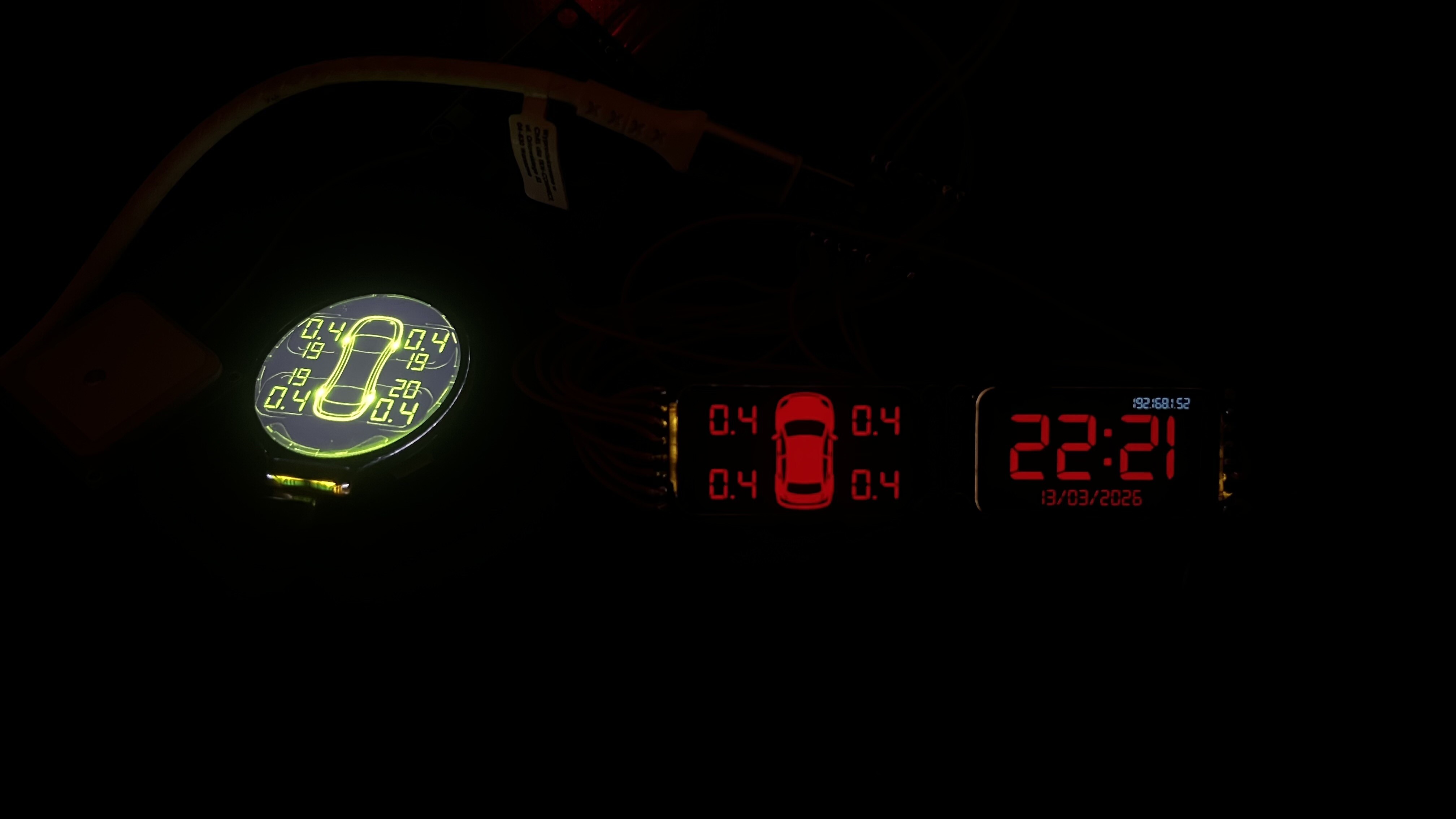

Today I’m finish test with some ble TPMs so now it’s propably almost finish my clock :slightly_smiling_face:
Works quite good, only changing colors from website works little slower, delay is about 200ms but tasks with ble/gps and draw is priority for me. Color we will change once, and we will watching on screen al day :slightly_smiling_face:

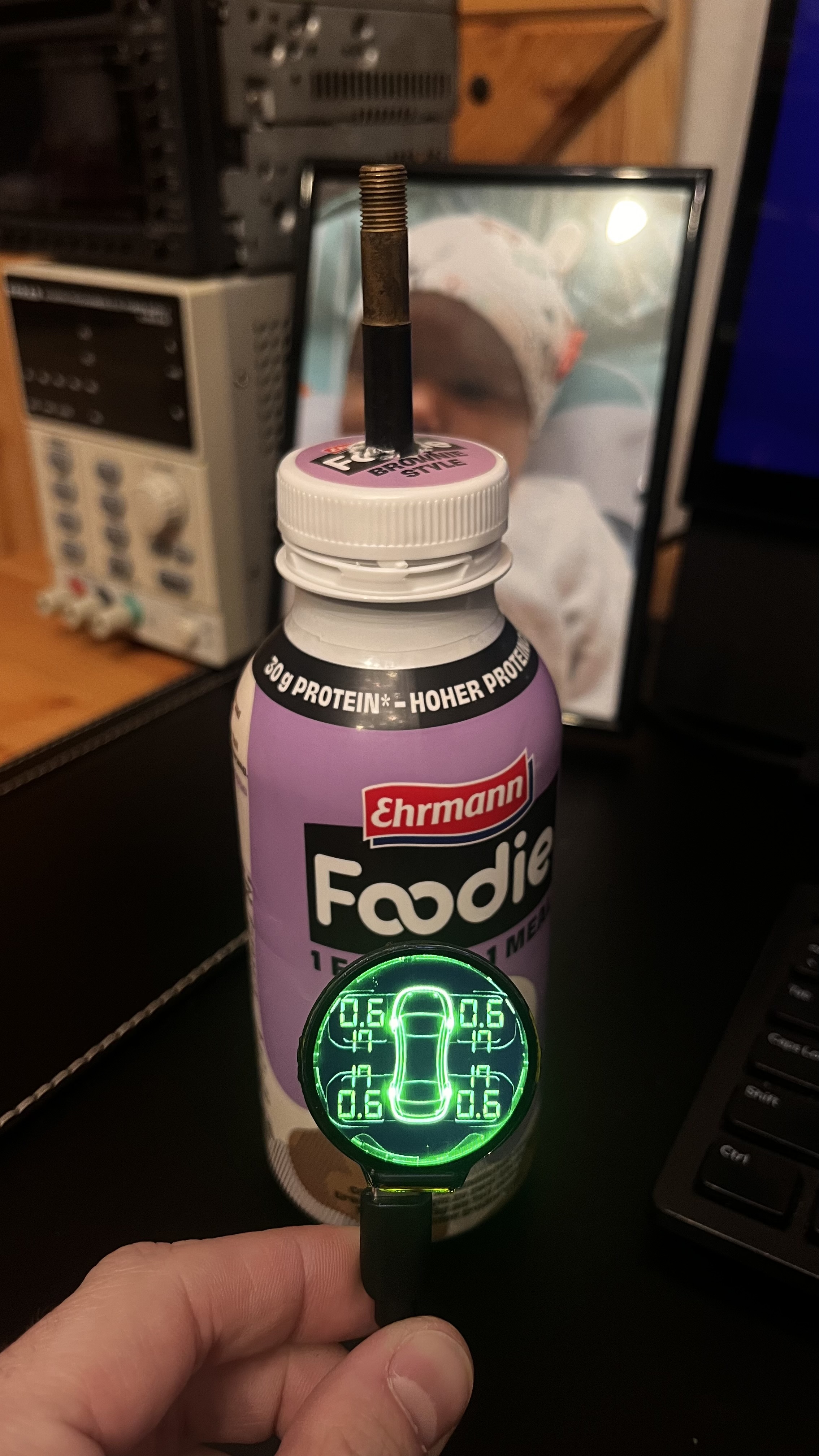

And my semi pro pressure tester from….. yoghurt :slight_smile:
